Functions:

  • Hydro-static Pipeline Testing
  • Fluid heating (oil or water, C-rings or tanks)
  • Hot oiling
  • Chemical pumping
  • Pressure pumping (back pressure on annulus for Fracs etc.)
  • Injection work
  • Tank cleaning
  • Tank flushes
  • Gamma jet services for turnaround applications

Specifications:

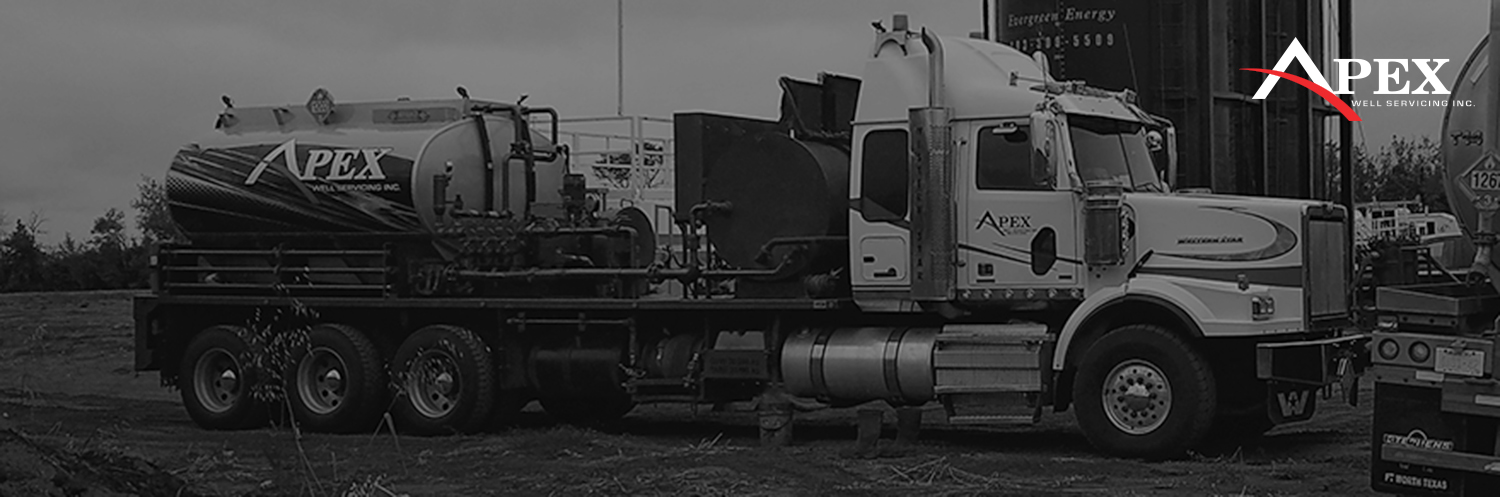

  • 2012 Western Star Tandem Axle with a Cummins ISX 550 HP engine
  • Built-in fire suppression direct to the burners
  • One 8 mm BTU burner
  • Three compartment 10m3 coded TC412 tank exceeds DOT TDG specifications
  • Rated tank carries solvents & other fluids
  • Two 3m3 compartment and one 4m3 compartment
  • 132’ of integral certified 1” 6000psi rated working pressure hose on a hydraulic reel
  • 120’ of 1 1/4 line pipe with unions rated for 5000psi
  • 3” x 2” Durco hydraulically driven centrifugal pump to feed the burners
  • 4” gear pump for loading, unloading & transferring fluids
  • 3” x 5” Gardner Denver 5000psi rated working pressure triplex pump
  • Containment trays are included with the truck for the line pipe

Data Acquisition System:

  • TCB fluid management system
  • Pump rate
  • Pump pressure
  • Total volume pumped
  • Inlet & discharge temperature
  • Inlet & discharge pressure
  • Engine temperature
  • Engine RPM
  • Engine oil pressure & temperature
  • Hydraulic oil pressure & temperature
