Functions:

  • Pressure pumping
  • Fluid pumping for coil tubing, mixing chemicals on the fly
  • Injectivity Testing
  • Acid pumping
  • Displace frac balls & hold annulus pressure simultaneously
  • Pressure testing including wellheads & BOPs

Specifications:

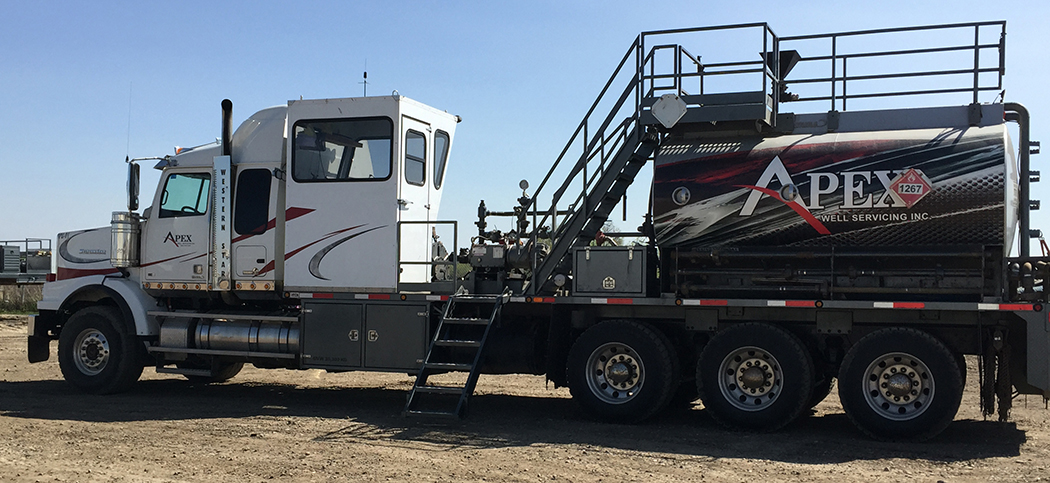

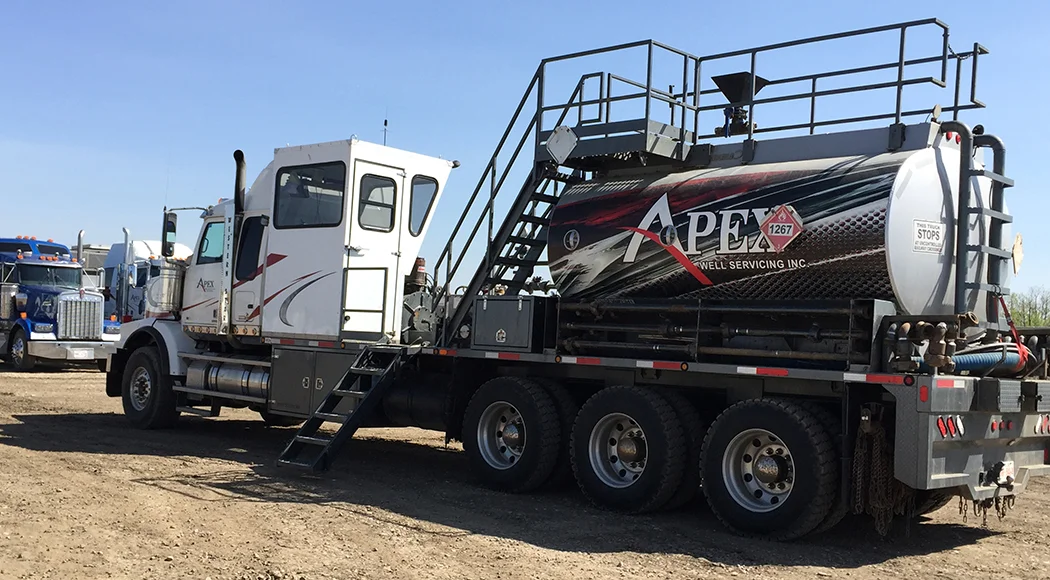

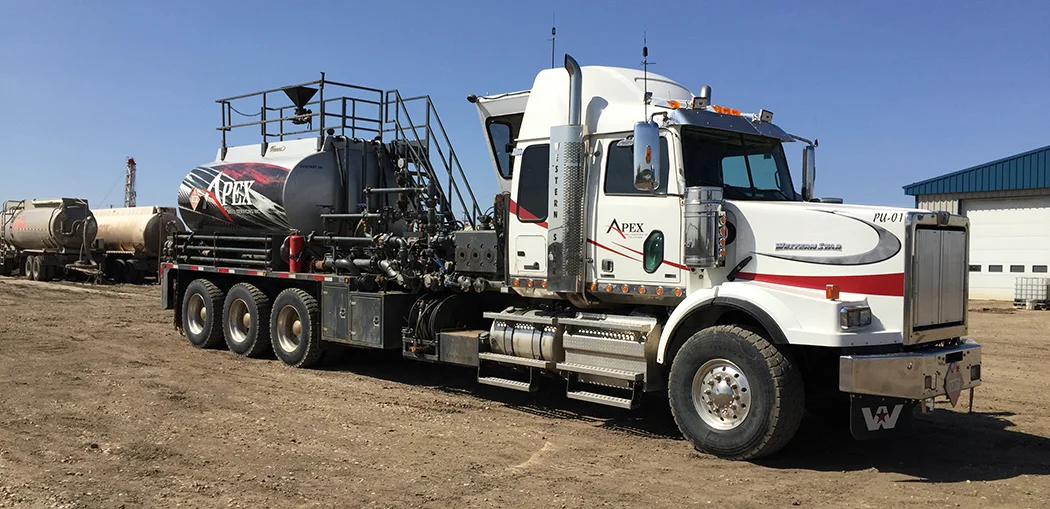

  • 2012 Western Star Tri-Axle with a Detroit isx 550 HP engine
  • ESP shut down at the operator’s panel
  • 10K/15K high rate pump up to 1000L/min @ 0Mpa
  • 10K/15K Rate 750L/min @ 24Mpa
  • 10K/15KRate 500L/min @ 35Mpa
  • Two compartment 10m3 coded TC412 tank exceeds all DOT TDG specifications
  • Rated tank carries diesel, solvents
  • One 3m3 & one 7m3 compartments
  • 100’ of integral certified 1” 10,000psi rated working pressure hose on a hydraulic reel
  • 160’ of 2” line pipe with unions rated for 15,000psi
  • Two 4” gear pump for loading, unloading & transferring fluids
  • 10,000psi/15,000psi rated working pressure triplex pumps pressure pumping applications on wells
  • Pop valve is plumbed back to the tank
  • Inline check valve off the pressure end of the pump
  • Containment trays included with the truck for the line pipe

Data Acquisition System:

  • TCB fluid management system
  • Pump rate
  • Pump pressure
  • Total volume pumped
  • Inlet & discharge temperature
  • Inlet & discharge pressure
  • Engine temperature
  • Engine RPM
  • Engine oil pressure & temperature
  • Hydraulic oil pressure & temperature
