SERVICE RIGS DOUBLE/TRIPLE

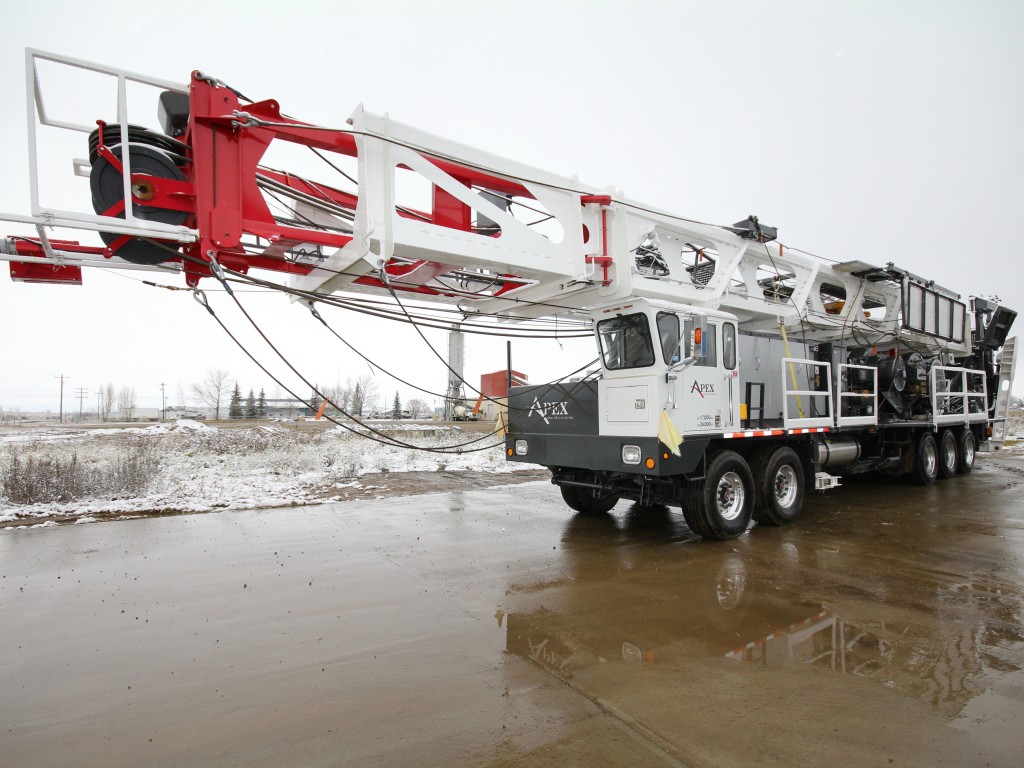

Service Rig 3 - Telescopic
- 2010 CBI design mobile free standing rig Double/Triple (Rig 3)
- Class III accumulator
- 105’ (32m) mast with 200,000 lbs/62,300 DaN hook load
- 42” x 10” CBI design drawworks & disc assist
- Load monitoring system on rear beam, front beam & outrigger load points
- Mobility for period one weights
- Maximum static hook load 200,000 lbs 6 line 150,000 lbs 4 line

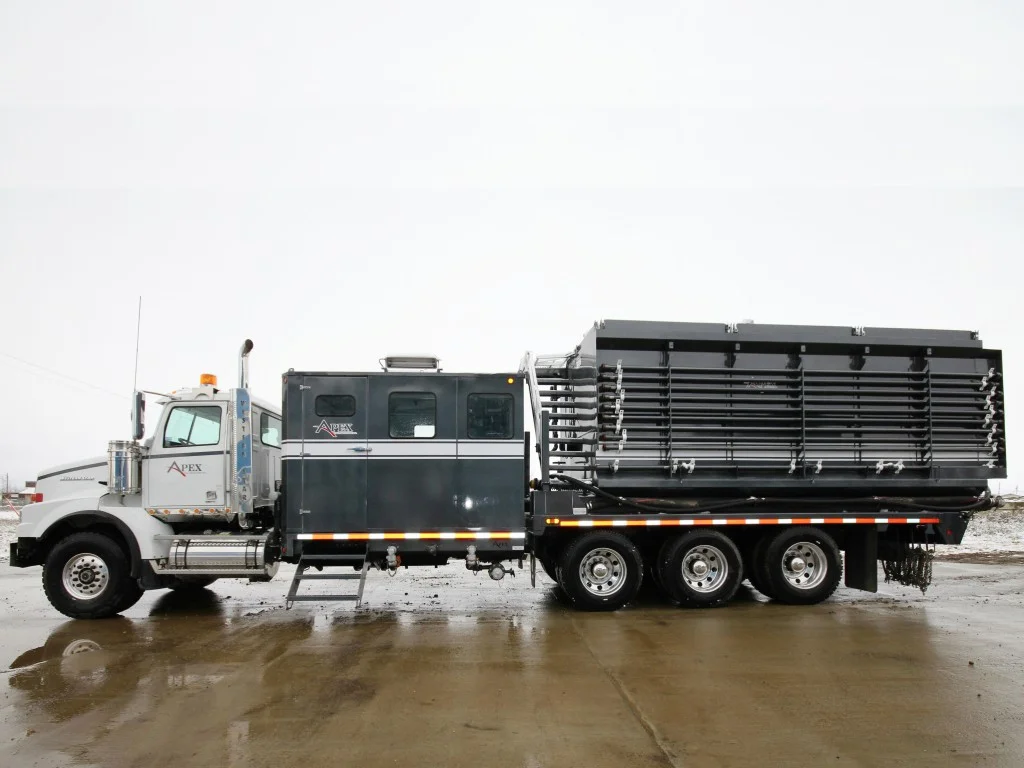

Pump Truck
- Western Star/Tri Drive 450 HP Mercedes
- SJ Petro 5000psi pump & manifold system
- Heated cabin over pump & controls with 2 access doors & roof venting
- 32m3 tank with trough, degasser & external tank gauge
- Flo Pro 9100 intrinsically safe flow rate meter

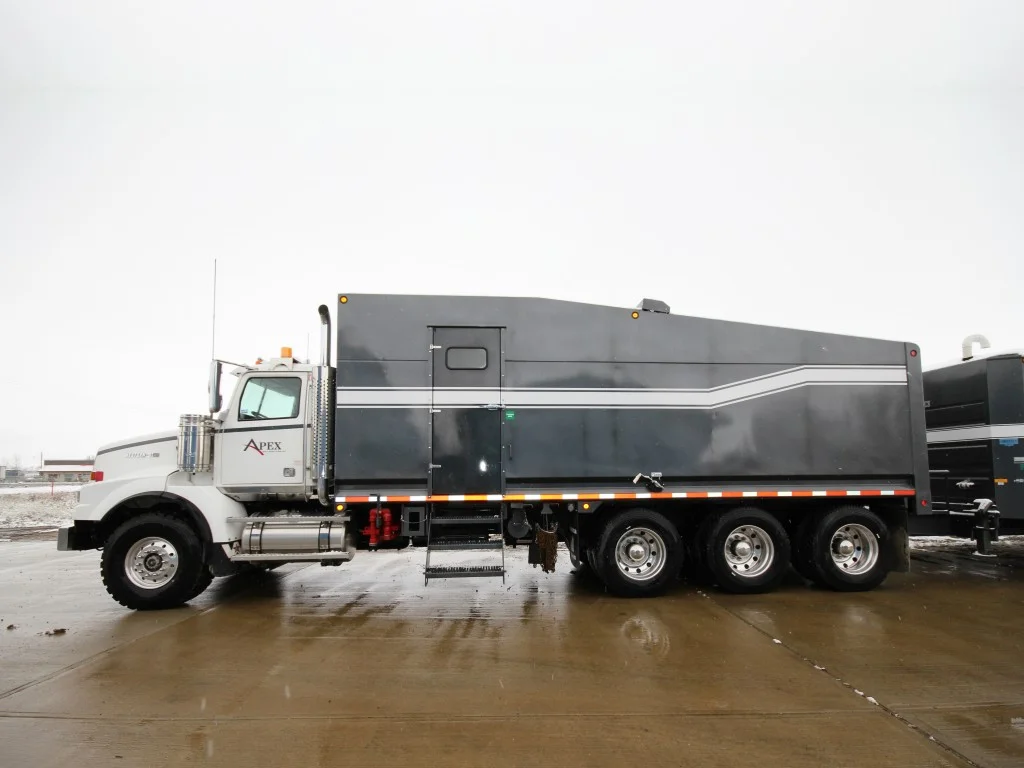

Equipment Truck
- Enclosed Western Star/Tri Drive 450 HP Mercedes
- 25‘ heated & lit enclosure
- BOP slide & testing stump
- Workbench with grinder & vise

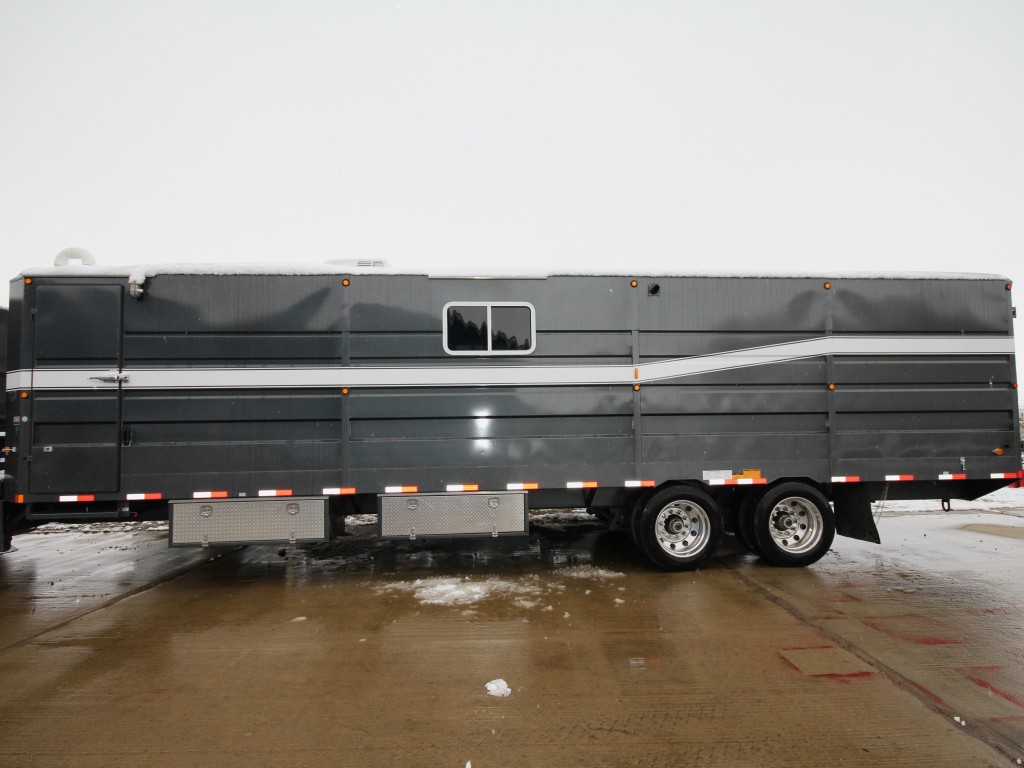

Doghouse
- 40’ doghouse with washroom & workbench
- Class III system with 55 kW generator
- BOP control system data Reservoir capacity 83 USG (314 L) & accumulator quantity 4 x 11 USG (41.6 L)
- Total AEUB accumulator volume 44 USG (166.5 L) Accumulator pre-charge 1000psi (7000 kPa)
- Maximum accumulator pressure 3000psi (21000 kPa)
- Recommended manifold pressure 1500psi (10500 kPa)
- CAT 550 triplex pump output 4.5 US GPM (17 LPM)
- Remote hydraulic over hydraulic
- N2 backup 2 x 337 ft2 (58 L) cylinders @2200psi (15400 kPa)
Service Rig 4 - Telescopic
- 2012 tandem Steer/Tri Drive Western Star mobile free standing double/triple
- Class III accumulator 105’ mast with 200,000 lbs hook load
- Maximum static hook load 200,000 lbs 6 line 150,000 4 line
- F.A.S.T. 450 42” x 10” drawworks & disc assist
- Load monitoring system on rear beam, front beam & outrigger load points
Pump Truck
- Western Star/Tri Drive 450 HP Mercedes
- SJ Petro 5000psi pump & manifold system
- Heated cabin over pump & controls with 2 access doors & roof venting
- 32m3 tank with trough, degasser & external tank gauge
- Flo Pro 9100 intrinsically safe flow rate meter
Equipment Truck
- Enclosed Western Star/Tri Drive 450 HP Mercedes
- 25’ heated & lit enclosure
- BOP slide & testing stump
- Workbench with grinder & vise
Doghouse
- 40’ doghouse with washroom & workbench
- Class III system with 55 kW generator
- BOP control system data
- Reservoir capacity 83 USG (314 L) & accumulator quantity 4 x 11 USG (41.6 L)
- Total AEUB accumulator volume 44 USG (166.5 L)
- Accumulator pre-charge 1000psi (7000 kPa)
- Maximum accumulator pressure 3000psi (21000 kPa)
- Recommended manifold pressure 1500psi (10500 kPa)
- CAT 550 triplex pump output 4.5 US GPM (17 LPM)
- Remote hydraulic over hydraulic
- N2 backup 2 x 337 ft2 (58 L) cylinders @2200psi (15400 kPa)
Service Rig 7 - Telescopic
- 2008 Irontech SR242 Freestanding Double/Triple service rig
- Class lll Accumulator
- 104' mast with 225,000 lbs (100,080 DaN) hook load
- 42x10 Chain driven Rig Up drawworks c/w dual disc brakes
- Allison 4700DB OFS transmission
- Mechenical freestanding outriggers
- Dertroit Diesel series 60 engine
- legal working weight for Alberta periods 2-4
Pump Truck
- Detroit Diesel 2-stroke (screamin jimmy)
- Dreco 6D 500 (6"x4.5" 500hp triplex pump)
- 28m3 tank with trough, degasser, and external tank gauge
Equipment Truck
- 1998 international 4000 series
- Open style
- 5000 PSI testing stump
- 5000PSI double gate BOP's (7 1/16") c/w Spherical annular preventer
Doghouse
- 40' doghouse with washroom and workbench
- Class lll accumulator system with 55kw generator
- Resevior capacity 140 US gallons (530L)
- Accumulator quantity (4)x11 US gallons (4x41.6L)
- Total AEUB Acc volume 40 US gallons (151.4L)
- Acc precharge 1000 PSI (7000 KPA)
- Max acc pressure 3000 PSI (21000 KPA)
- recommended manifold pressure 1500 PSI (10500 KPA)
- Controls- 4 station hydraulic over hydraulic
Located in North Dakota.
Service Rig 8
- 2010 SRE 242
- 107 ft 220,000lb double triple derrick
- Posi-Stop Crown/Floor Protection
- 42X10 Draw works with single disk brake
- Capable of Rigging up on Free Standing Beam
Doghouse
- 24’ bumper pull enclosed trailer w/ lockers, heater, and safety equip.
Tool Trailer
- Bumper pull trailer
Located in North Dakota.
Service Rig 9 - Telescopic
- 2008 Irontech SR242 Freestanding Double/Triple service rig
- Class lll Accumulator
- 104' mast with 225,000 lbs (100,080 DaN) hook load
- 42x10 Chain driven Rig Up drawworks c/w dual disc brakes
- Allison 4700DB OFS transmission
- Mechenical freestanding outriggers
- Dertroit Diesel series 60 engine
- legal working weight for Alberta periods 2-4
Pump Truck
- Detroit Diesel 2-stroke (screamin jimmy)
- Dreco 6D 500 (6"x4.5" 500hp triplex pump)
- 28m3 tank with trough, degasser, and external tank gauge
Equipment Truck
- 1998 international 4000 series
- Open style
- 5000 PSI testing stump
- 5000PSI double gate BOP's (7 1/16") c/w Spherical annular preventer
Doghouse
- 40' doghouse with washroom and workbench
- Class lll accumulator system with 55kw generator
- Resevior capacity 140 US gallons (530L)
- Accumulator quantity (4)x11 US gallons (4x41.6L)
- Total AEUB Acc volume 40 US gallons (151.4L)
- Acc precharge 1000 PSI (7000 KPA)
- Max acc pressure 3000 PSI (21000 KPA)
- recommended manifold pressure 1500 PSI (10500 KPA)
- Controls- 4 station hydraulic over hydraulic
Service Rig 11
- 2011 Service King
- 104 ft 250,000lb double triple derrick
- 42X12 Draw works with dual disk brake
- Capable of Rigging up on Free Standing Beam or small beam
Doghouse
- 24’ bumper pull enclosed trailer w/ lockers, heater, and safety equip.
Tool Trailer
- 36ft Gooseneck Trailer
Service Rig 12
- 2012 Service King
- 104 ft 250,000lb double triple derrick
- 42X12 Draw works with dual disk brake
- Capable of Rigging up on Free Standing Beam or small beam
Doghouse
- 24’ bumper pull enclosed trailer w/ lockers, heater, and safety equip.
Tool Trailer
- 36ft Gooseneck Trailer
