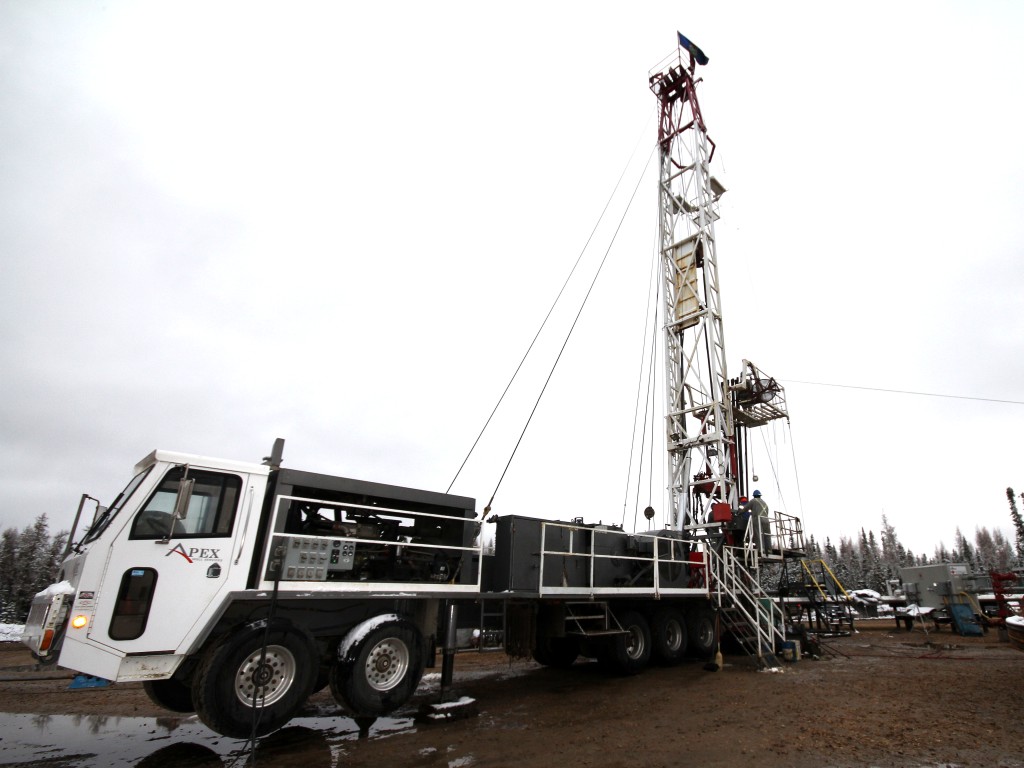

SERVICE RIGS 1 & 2 - Stiff Mast

  • 2008 CCM mobile free standing rig
  • 500 HP 60 series Detroit
  • 72’ Derrick (21.9m) 140,000 lbs/62 300 DaN hook load
  • RG 38” X 8” with disc brake & sand line drum
  • 22 Gallon Class II BOP system
  • 60.3 mm 70 mm handling systems & up
  • 24.4 mm rod handling equipment up to 25.1 mm rod handling equipment

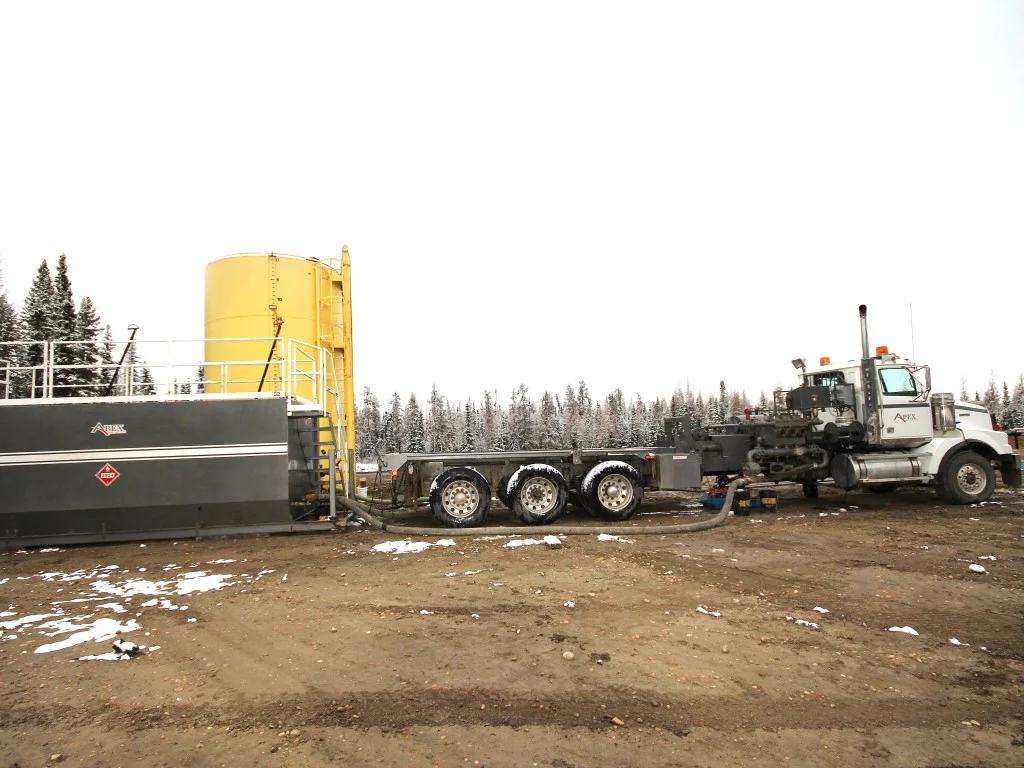

Pump Truck

  • Western Star 500 HP
  • E-300 horizontal triplex 5” X 6” (5000psi)
  • 5 valve manifold system
  • 28m3 dual compartment tank
  • Integrated degasser & trough
  • Portable manlift system for tank entry

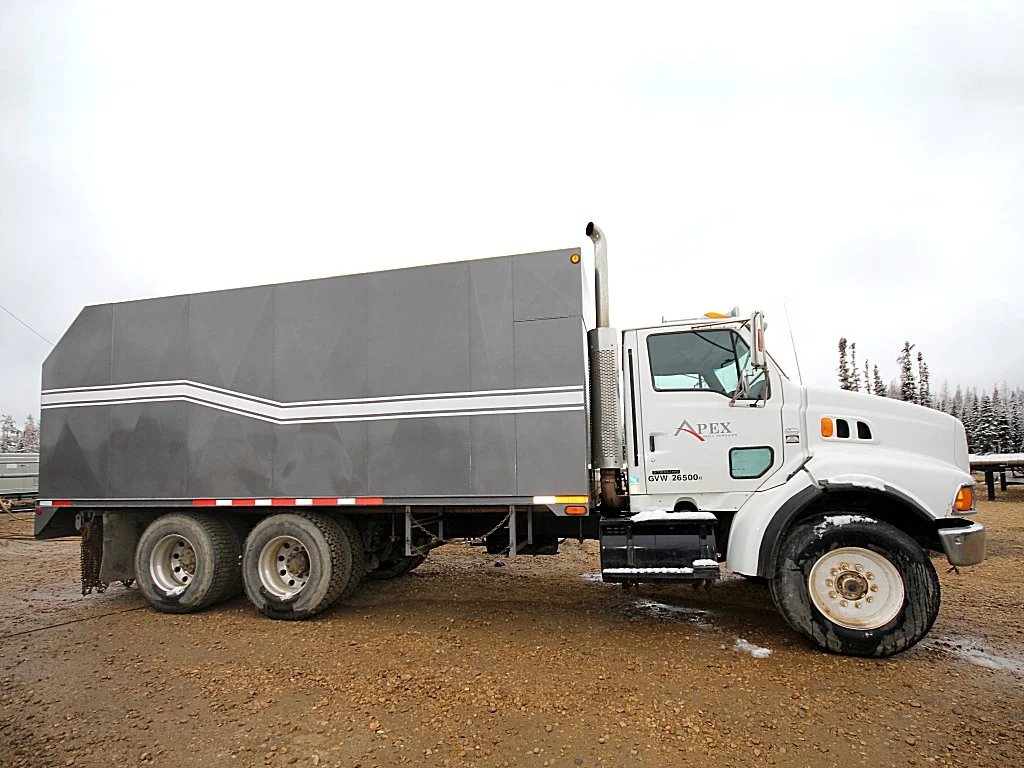

Equipment Truck

  • Equipment truck is enclosed
  • BOP slide system
  • Testing stump

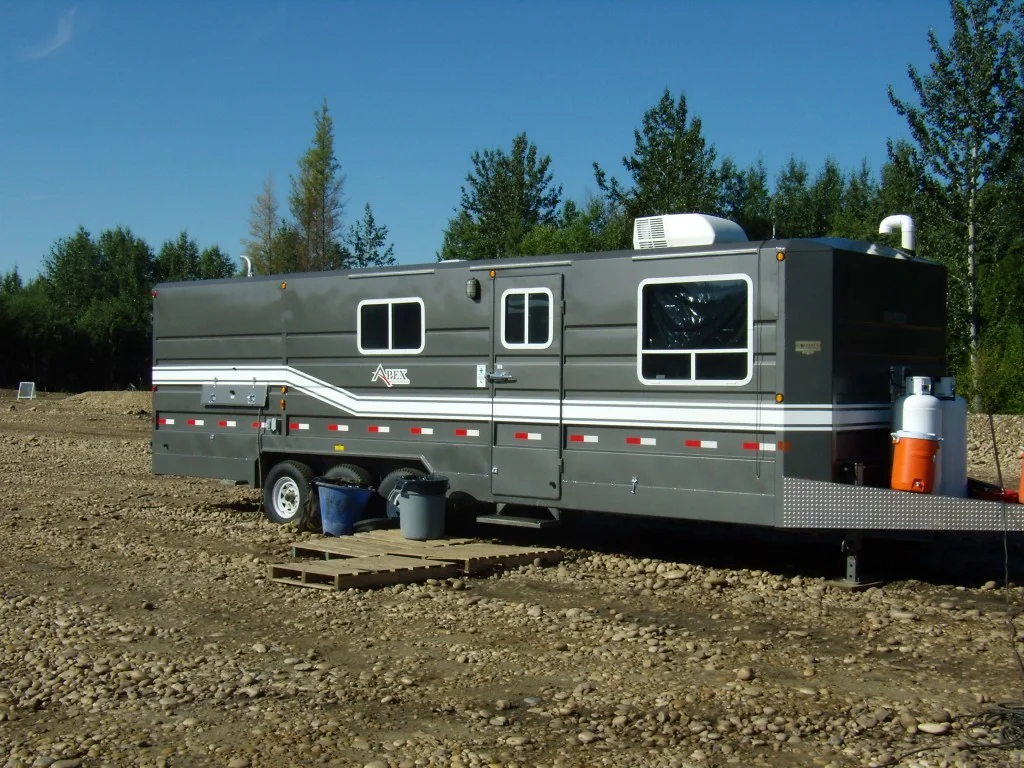

Doghouse

  • 30’ doghouse with integrated 30 kW generator

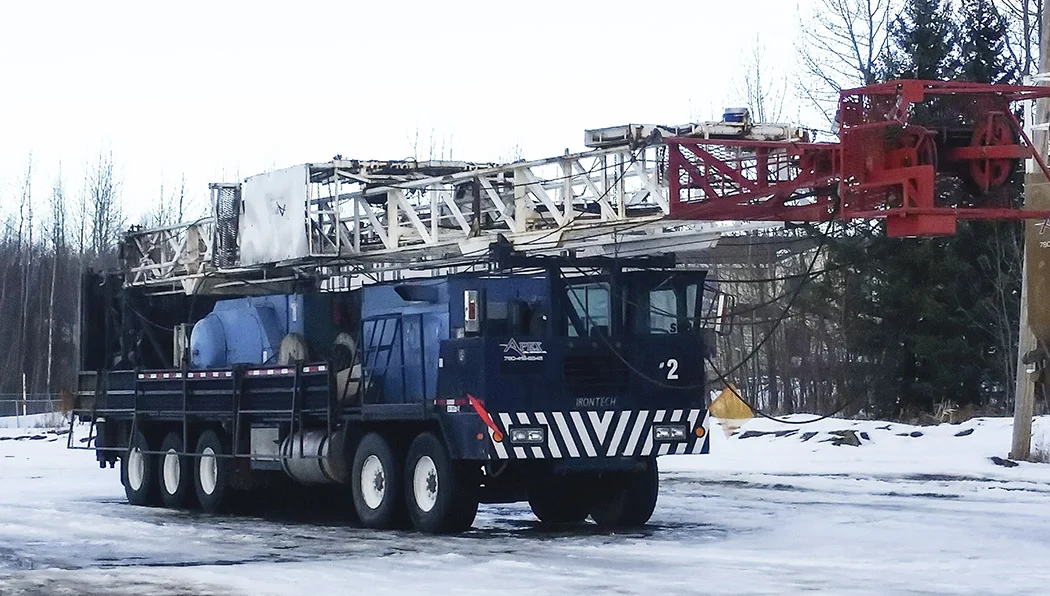

Service Rig 5 - Stiff Mast

  • 2001 Irontech free standing single service rig
  • Undergoing overhaul/refurbishment 2015
  • 38” x 10” mainland draw works KSM hydraulic outriggers
  • 74’ ground to crown
  • 120,000 lbs hook load/53,400 DaN hook load
  • Class II system
  • 50 Series Detroit

Equipment Truck

  • 2000 Mack
  • Single Steer/Tandem Drive
  • Testing stump
  • Open style

Pump Truck

  • Pump truck
  • Carrier style 3000psi pump & tank

Doghouse

  • 40’ doghouse
  • 55 kW generator
  • Washroom & workbench

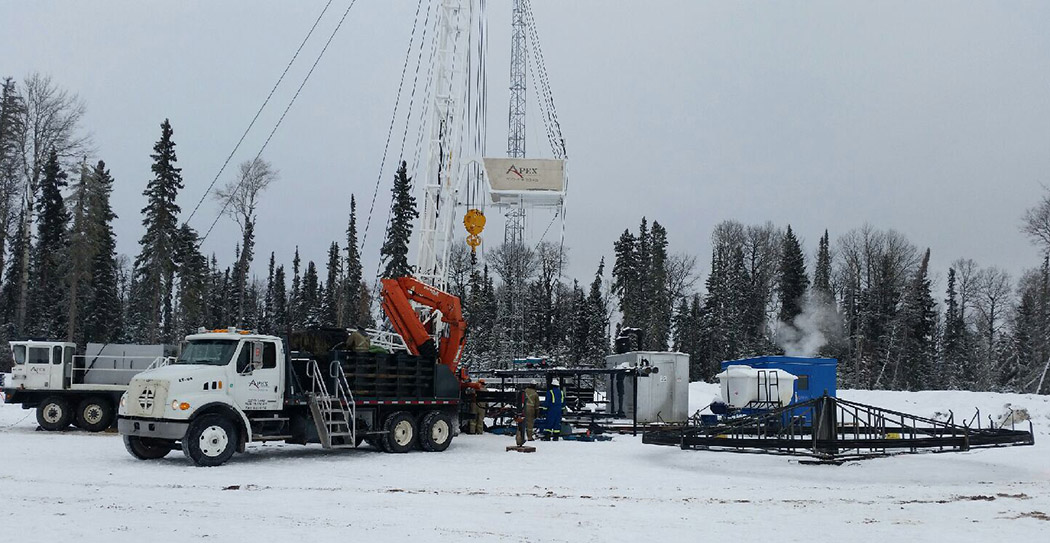

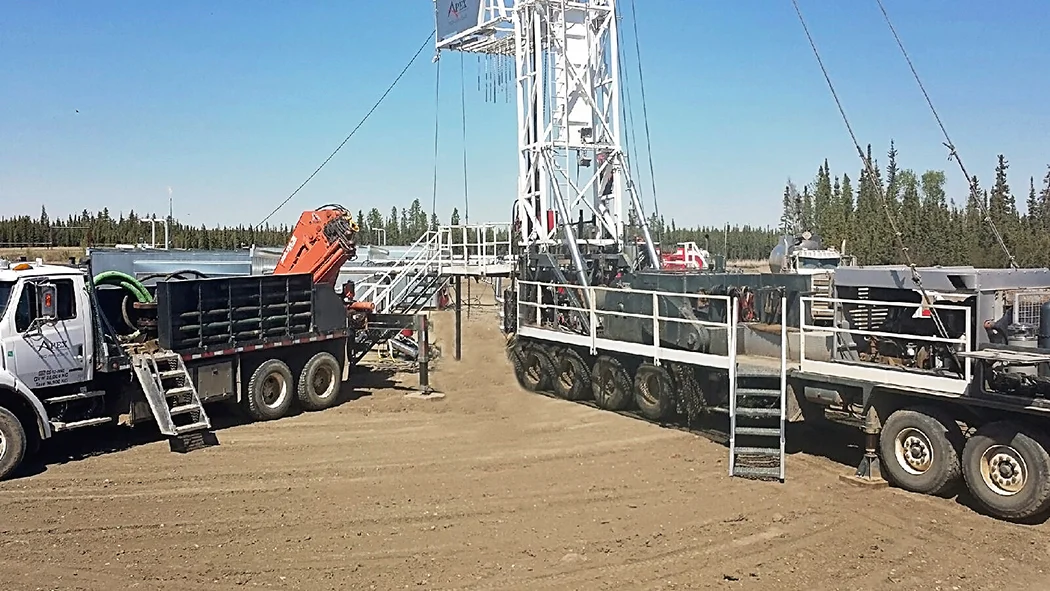

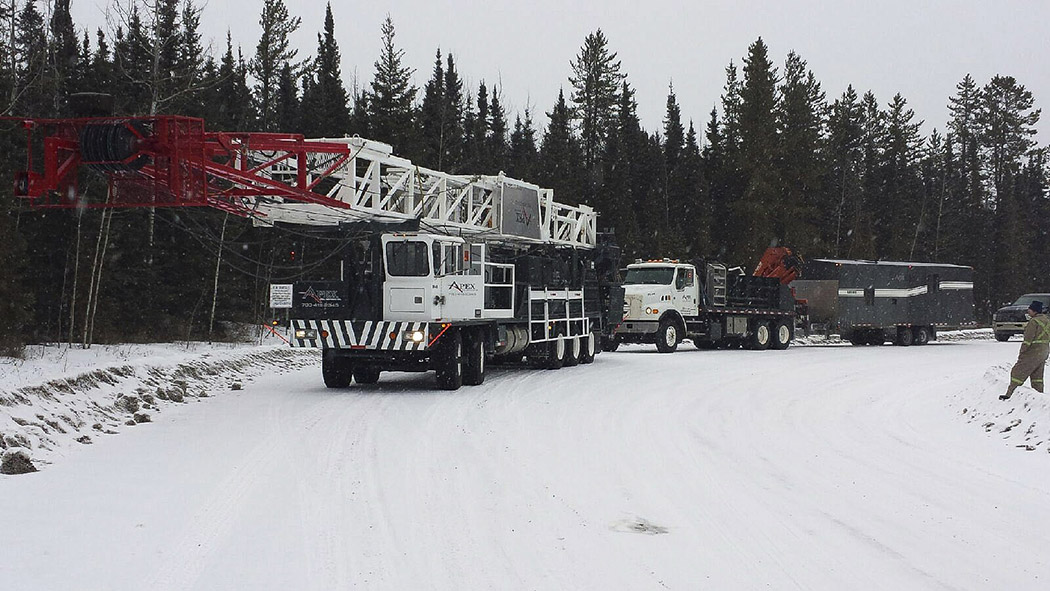

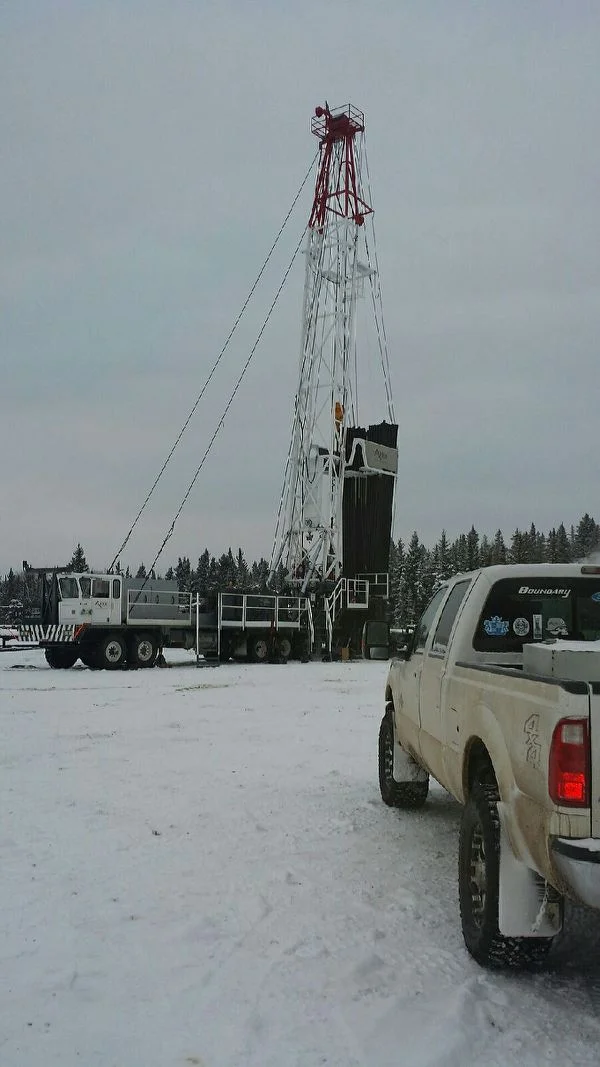

Service Rig 6 - Stiff Mast

  • 2001 Mainland M360 50 Series free standing single service rig
  • Complete overhaul/refurbishment 2014
  • 38” x 10” Mainland drawworks
  • KSM hydraulic outriggers
  • 72’ ground to crown
  • 120,000 lbs/53,400 DaN hook load
  • Class II system
  • 50 Series Detroit

Equipment Truck/Picker Truck

  • 2005 sterling single Steer/Tandem Drive
  • Open style fully stocked with all tools necessary
  • 8 ton picker mounted at rear

Pump Truck

  • 346 HP 3” X 5” Gardner Denver pump
  • Carrier Style 3000psi pump & tank

Doghouse

  • 40’ doghouse
  • 55 kW generator
  • Washroom & workbench

Service Rig 10 - Stiff Mast

  • Kobe Manufacturing Free Standing Single
  • 140,000 lbs. hookload
  • 72' mast
  • 38 X 10 draw works
  • 3,000m 1/2" swage sandline
  • Cat C11
  • Tri-drive tandem steer
  • Class 2 22 Gallon 3,000 PSI BOP System
  • Hydraulic Folding Catwalks

Pump

  • Carrier Style
  • SJ300 4.5 X 5  5,000 PSI pump c/w pre charge pump
  • 7 valve manifold rated at 35 mpa working pressure

Tank

  • 29m3 tank with settling trough
  • 300' of 3" line pipe with chicsan swivels
  • Full string of pup joints
  • Poor boy degasser
  • Steam coild 1"
  • Storage room behind tank

Doghouse

  • 40' Doghouse c/w washroom & workbench
  • 40 KVA Westquip Genset pulled by 2004 Western Star Aux Truck

Auxiliary Truck

  • 2004 Western Star
  • CAT C11 motor
  • Multiple storage bins
  • Pup joint racks
  • BOP slide & testing stump

Auxiliary Equipment

  • Foster 5893R HYD. Tubing tongs
  • Cavin air slips
  • 60.3, 73mm, 88.9mm eve elevators
  • 6 - 30 lb. fire extinguishers
  • 4 - SCBA packs w/ 4 spare bottles
  • 1 - 73mm safety valve
  • 1 - 88.9m safety valve
  • Rod elevators & wroncones up to 25.4mm
  • Hydraulic rod tongs
  • Floor stairs

Click Here for Brochure
