Functions:

  • Hydro-static Pipeline Testing
  • Diesel Powered
  • Super heating/fluid heating (pits or tanks)
  • Hot oiling
  • Chemical pumping
  • Pressure pumping (back pressure on annulus for fracs, etc.)
  • Injection work
  • Slip stream heating

Specifications:

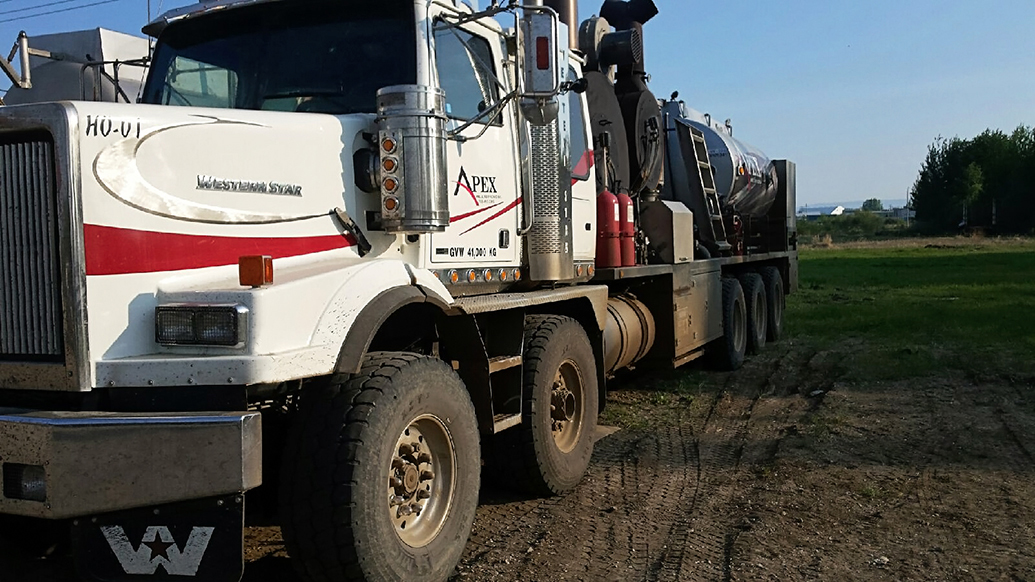

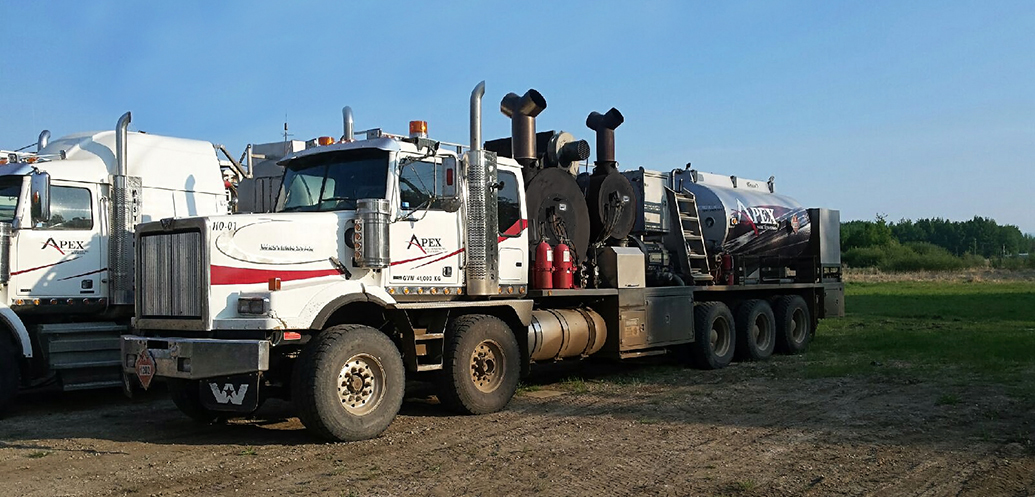

  • 2012 Western Star 4900SB Tandem/Tridem with a Cummins ISX 550 HP engine
  • Diesel powered

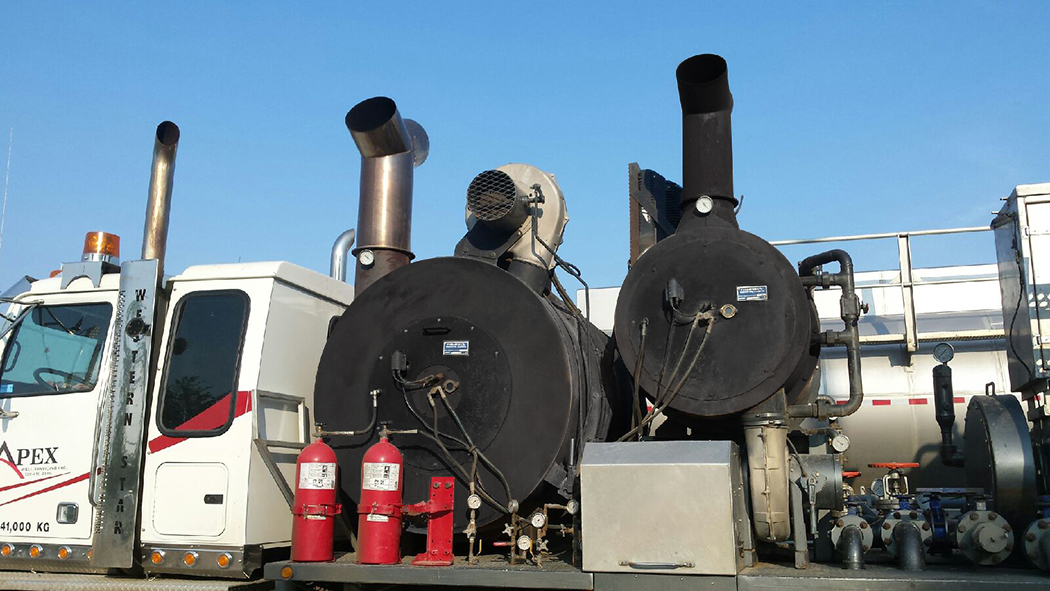

  • 11.6 mm BTU burner & 5.2 mm BTU burner
  • Burners fired individually, in parallel or in series output of 16.8 mm BTU’s
  • Three compartment 10m3 coded TC412 tank that exceeds all DOT TDG specifications
  • Rated tank carries diesel, solvents & other fluids
  • Two 3m3 & one 4m3 compartments
  • 132’ of integral certified 1” 5000psi rated working pressure hose on a hydraulic reel
  • 80’ of integral certified 2” line pipe (1.78” I.D.) with 602 unions rated for 5000psi
  • 3” x 2” Durco hydraulically driven centrifugal pump feeding burners
  • 4” gear pump for loading, unloading & transferring fluids
  • 5” x 3” Gardner Denver 5000psi

Data Acquisition System:

  • TCB fluid management system
  • Pump rate
  • Pump pressure
  • Total volume pumped
  • Inlet & discharge temperature
  • Inlet & discharge pressure
  • Engine temperature
  • Engine RPM
  • Engine oil pressure & temperature
  • Hydraulic oil pressure & temperature
