Functions:

  • Hydro-static Pipeline Testing
  • Diesel powered
  • Super heating/fluid heating (pits or tanks)
  • Capable of heating oil or water
  • Fluid transfer 2.5m3 per min
  • Two 11.6 mm BTU burner
  • Two 4” X 3” Durco hydraulically driven centrifugal pumps to feed the burners
  • Separate power supply (John Deer power tech plus diesel 275 HP 756 lb - ft)
  • Slip stream heating

Specifications:

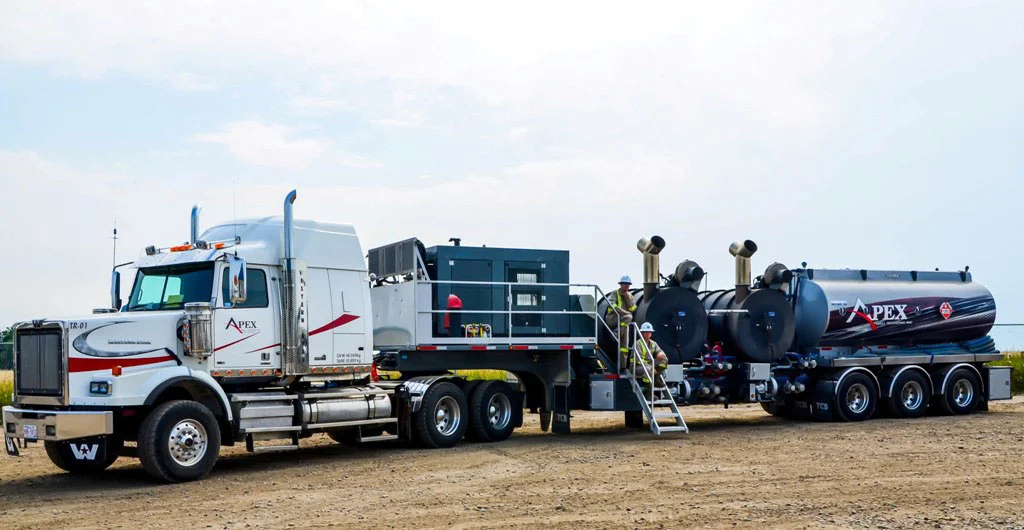

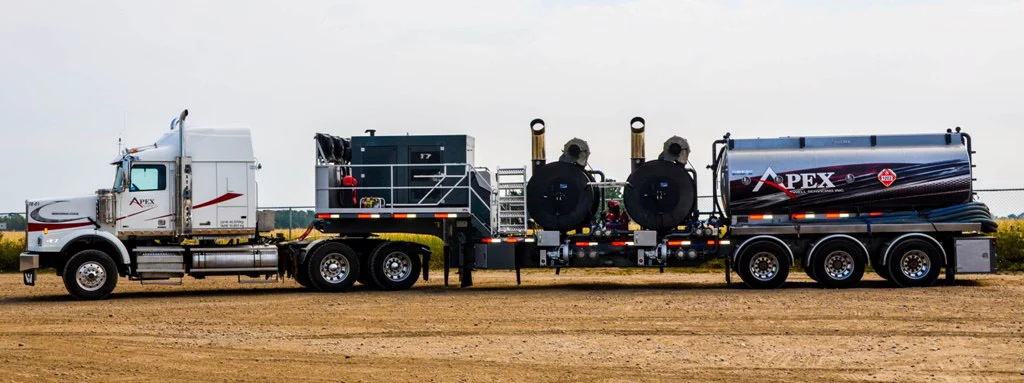

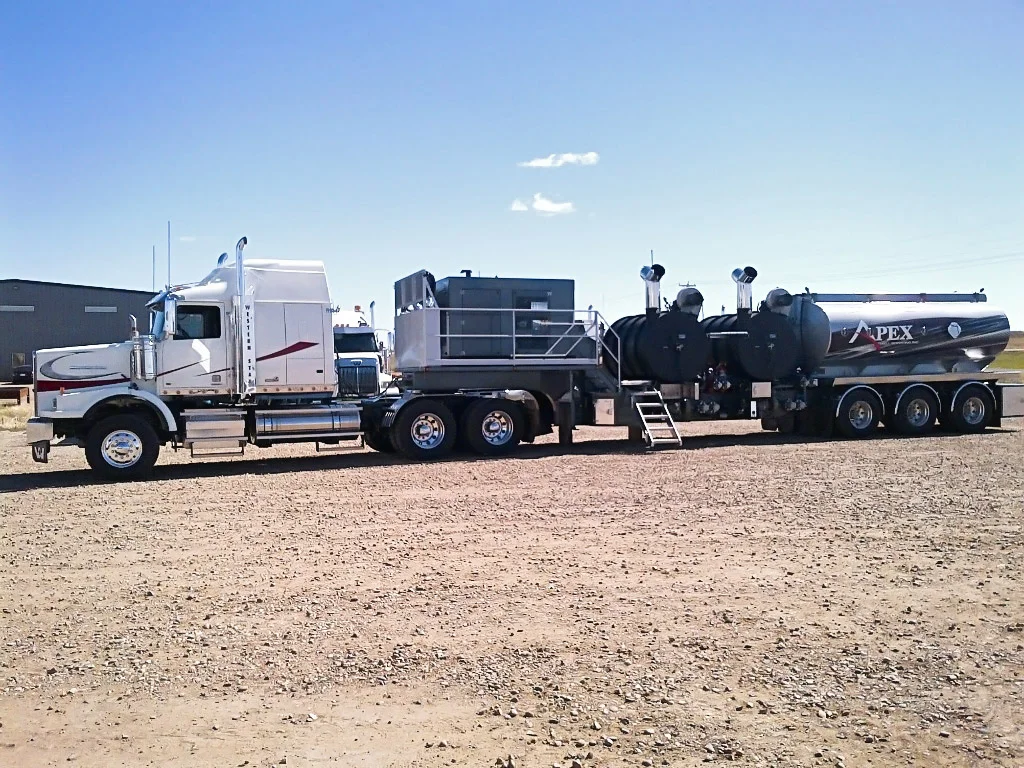

  • 2012 Western Star Tandem Axle Tractor & Tri-Axle Trailer
  • Diesel powered
  • Two 11.6 mm BTU burner
  • ESP shut down at the operator’s panel
  • Built-in fire suppression direct to the burners
  • Burners fired individually in a parallel or in series
  • Three compartment 17m3 coded TC412 tank exceeds DOT TDG specifications
  • 10m3 of diesel to last for 24hrs of heating
  • 2m3 compartment for slop 2m3 compartment for methanol
  • 4” gear pump for loading, unloading & transferring fluids

Data Acquisition System:

  • TCB fluid management system
  • Pump rate
  • Pump pressure
  • Total volume pumped
  • Inlet & discharge temperature
  • Inlet & discharge pressure
  • Engine temperature
  • Engine RPM
  • Engine oil pressure & temperature
  • Hydraulic oil pressure & temperature
